Product Description

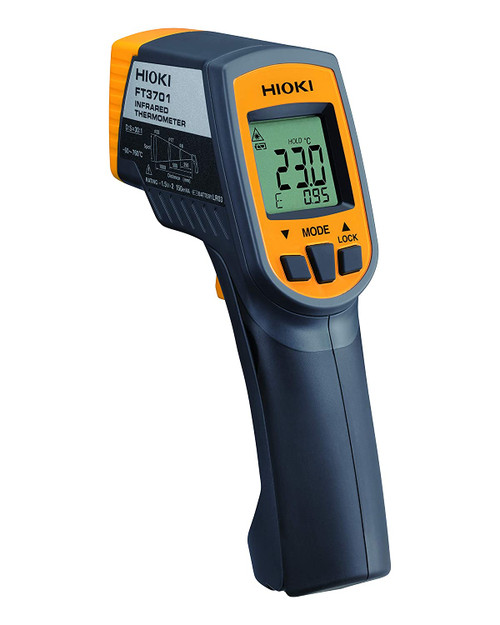

HIOKI FT3701 INFRARED THERMOMETER
● Measurement temperature range (℃): -60 to 760 ● Minimum temperature display (℃): 0.1 ● Mass (g): 256
● Power supply: AAA alkaline batteries x 2 (included) ● Width x Depth x Height: 48 x 119 x 172 mm ● Emissivity: 0.10 to 1.00 ● Distance to measurement range ratio (D to S): 30 to 1
* This product is for industrial use, so body temperature cannot be measured. Please be careful.
Specifications of this product
Brand name HIOKI
Part number FT3701
Product weight 256 grams
Model number FT3701
Resolution 0.1 degrees_celsius
Power supply type Battery type
Regarding radiation thermometer: Please note that this product is not suitable for use as a thermometer for body.
Product description
Easy and quick temperature measurement with gun type
● Easy to see display with gun type
● Full basic functions
● Low price
・ Measurement range: -60.0 to 550.0 ℃, resolution: 0.1 ℃ -60.0 to 760.0 ℃, resolution: 0.1 ℃
・ Measurement accuracy: -35.0 ~ -0.1 ℃: ± 10% rdg. ± 2 ℃, 0.0 ~ 100.0 ℃: ± 2 ℃, 100.1 ~ 500.0 ℃: ± 2% rdg. * -60.0 ~ -35.1 ℃, 500.1 ℃ ~ : No accuracy regulation
・ Response time: 1 second (90% response)
・ Measurement wavelength: 8 ~ 14 μm
・ Emissivity correction: ε = 0.10 ~ 1.00 (0.01 step)
・ Measurement field of view: φ 83 mm at a distance of 1 m
* Distance D: Field diameter S = 12: 13 φ100 mm at a distance of 13 m
* Distance D: Field diameter S = 30: 1
・ Aim: 2-beam laser marker (Class 2, 1mW Max.), Red
・ Functions: Continuous measurement mode, Max / Min / Max-Min / AVE measurement, alarm function, backlight, auto power off
・ Power supply: AAA alkaline batteries (LR03) x 2, continuous use time: 140h (with laser marker, backlight, buzzer off)
・ Dimensions / mass: 48W x 172H x 119D mm, 256 g (including batteries)
・ Accessories: AAA alkaline batteries (LR03) x 2, carrying case x 1
HIOKI
In the first stage, which has been in operation for about 40 years since its establishment in 1935, it has supported the business by mass-producing meters and testers.
After that, with the development of "Internal magnetic movable coil type tote band meter", our business was expanded in three directions of automation, in-house production, and standardization, and the current four product groups were constructed. Now, it has unique technologies such as metal non-contact voltage measurement technology and high-sensitivity current measurement technology.
Radiation thermometer
model
FT3701
Easy to see display with gun type
Full basic functions
Two types of radiation thermometers that can be selected according to the temperature measurement location
FT3700: For long focus, wide range temperature measurement FT3701: For long focus / narrow field, pinpoint temperature measurement Radiation thermometer with 2-point laser marker that clearly shows the temperature measurement location
Gun type radiation thermometer that can be easily measured with one touch
Just pull the measurement trigger and release it to hold the measured value
Since it is a radiation thermometer, it can easily measure dangerous places and places that cannot be reached.
Places that are moving and cannot be touched Places where there is a risk of electric shock Places that are out of reach Suitable for temperature measurement anywhere
Gun type that can be easily measured with one touch
The radiation thermometer can measure the temperature in places where it is in operation and cannot be touched, where there is a risk of electric shock, or where it is out of reach.
The long focus type FT3700 can be used for a wide range of temperature measurement, and the long focus / narrow field type FT3701 can be used for pinpoint temperature measurement, and can be purchased for different purposes.
In addition, some people said that it was difficult to specify the measurement range because the laser marker of the conventional product was a one-point method. In response to these voices, both products fire two laser markers, allowing the user to clearly see the measurement range. In addition, since it is often measured in a dark place, a backlight is attached to the display screen to improve convenience.
■ Product features
FT3701: Long focus, narrow field of view, suitable for pinpoint temperature measurement
For a distance of 1 m, measure the average temperature within a circle with a diameter of 52 mm.
(Distance: Field diameter = 30: 1)
The laser marker is a two-point type that can clearly recognize the measurement location.
The display screen is backlit, which is convenient for use in dark places.
* Not suitable for use as a thermometer for body temperature.
